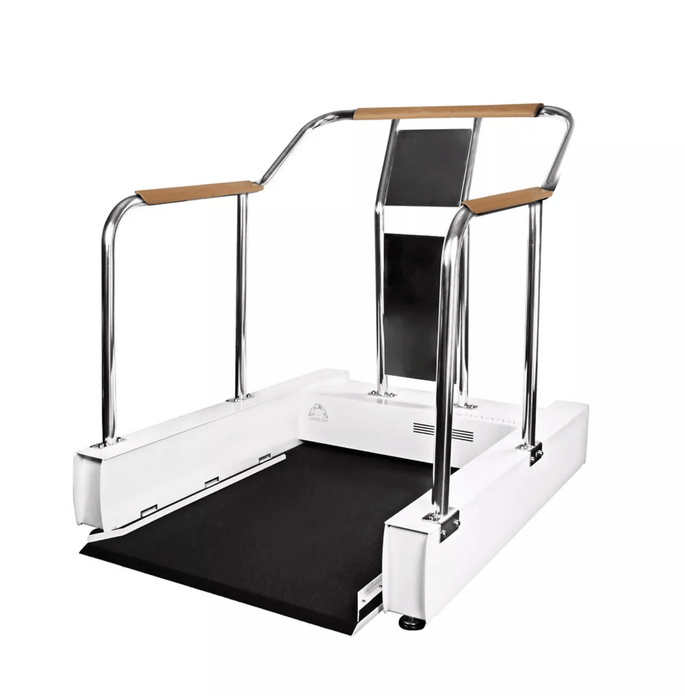

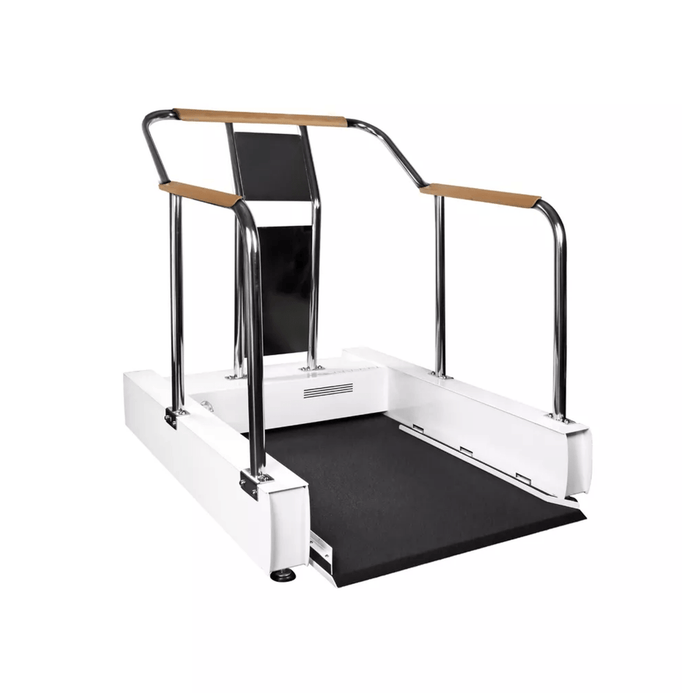

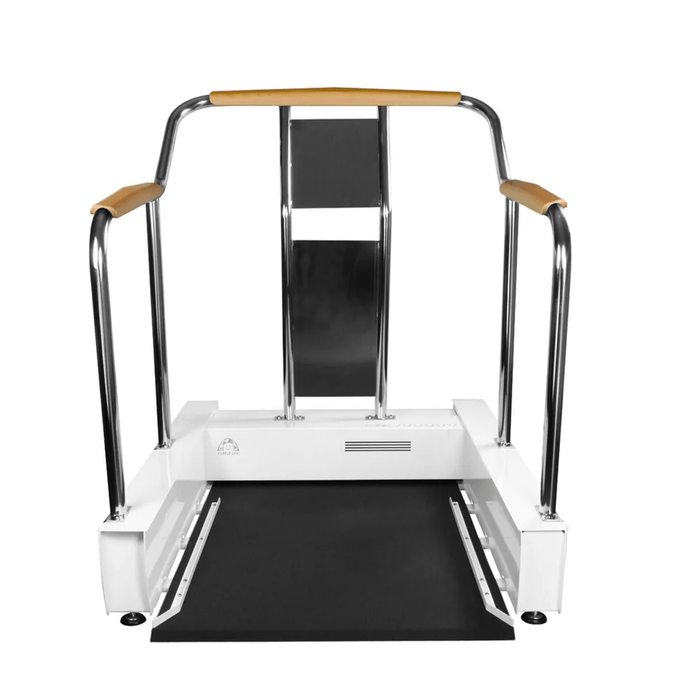

Full body vertical wheelchair exercise trainer
Global patented barrier-free full-body vertical rhythmic design
Patented in many countries around the world, this exercise device is designed for wheelchair users. Through vertical movements of the whole body, it helps wheelchair users exercise and relax, meeting the needs of those who find it inconvenient to go out for exercise, thereby delaying the ageing process and promoting overall health.
Whole Body Vertical Vibration (WBVV)
Whole Body Vertical Vibration (WBVV) is based on the principle that human growth and movement are influenced by gravity. Rhythmic waves travel through the disc, moving the body from bottom to top and from the inside out with sinusoidal speed and acceleration, gently stimulating every part of the body to maintain health and vitality. For health and wellness, WBVV allows the body to achieve optimal relaxation. This passive exercise does not increase cardiopulmonary stress, making it a great choice for seniors to exercise at home.

Technology innovation barrier-free training movement
TURTLE GYM's full-body vertical rhythm machine, combined with vertical rhythmic exercise methods, provides seniors with safe, comfortable and barrier-free exercise. The barrier-free design allows seniors to enter and exit the exercise room without burden, and the efficiency is doubled.

Make sports rehabilitation easier
✅ Ultra-quiet vertical rhythm mode, safe and barrier-free rhythm at home.
✅ The widened chassis design allows wheelchair users to board the aircraft without having to get out of their wheelchairs.
✅ 7 fixed frequencies + 3 automatic program modes, adjust the most suitable speed at any time.

Reverse degeneration! Reclaim your right to choose your life
✅Help the body become more flexible and increase the support of the lower limbs.
✅Stimulate all parts of the body and help the torso balance ability.
✅Helps inner & outer muscles from the inside out.

Design Details

| Product Specifications | Detailed parameters |
|---|---|
| Product Name | Full body vertical wheelchair exercise trainer |
| Model | ivib8020 |
| Frequency | About 3 ~ 9 Hz |
| Amplitude | Vertical amplitude about 2 mm |
| Operation Mode | Wireless Remote Control/Smart Turtlegym |
| Control Program | 7 fixed frequencies + 3 automatic program functions |
| Time setting | Each cycle is about 15 minutes |
| Appearance and structure | High-hardness steel structure + beech solid wood |
| Rated voltage | AC 110 V, 60 Hz |
| Rated power | 100 W |
| Dimensions | About L 1400 x W 1050 x H 1250 mm |
| Load capacity | About180 kg |
| Product weight | About 100 kg |
